About This

• Professional grade 1" anti-siphon valve with flow control; compatible with any standard sprinkler timer
• Designed for above ground installation, will prevent back flow when properly installed 6" above highest sprinkler head
• Operates automatically or manually with manual bleed screw
• Reverse Flow design reduces stress on diaphragm for dependable operation

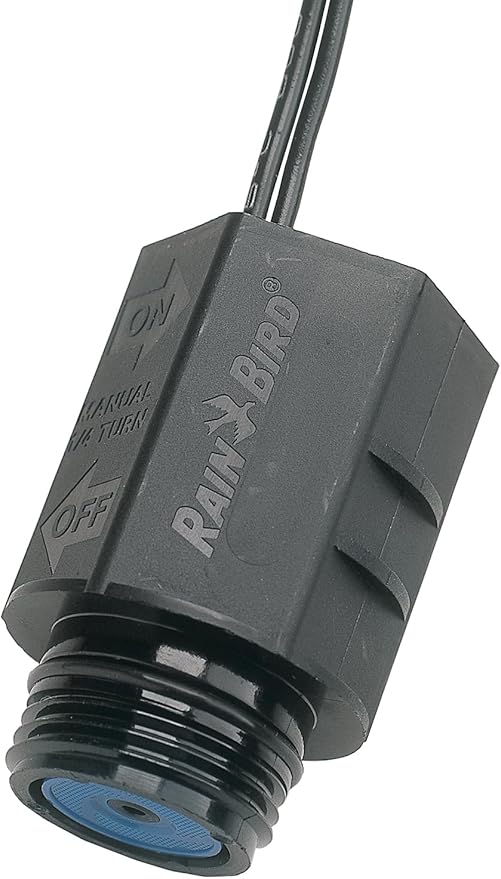

• Energy efficient, low power encapsulated solenoid with captured plunger
• Buna-N diaphragm provides superior performance in harsh water environments
• Flow Range 0.2 to 40 GPM; for less than 3 GPM flow or Drip applications install a 200 mesh filter before the valve

Overview

• Material : Plastic, Stainless Steel
• Brand : Rain Bird
• Item dimensions L x W x H : 3 x 6.5 x 7.5 inches
• Exterior Finish : Stainless Steel
• Inlet Connection Size : 1 Inches
• Inlet Connection Type : National Pipe Tapered
• Outlet Connection Type : FNPT
• Number of Ports : 2
• Outlet Connection Size : 1 Inches
• Specification Met : ASSE, CSA, IAPMO
