About This

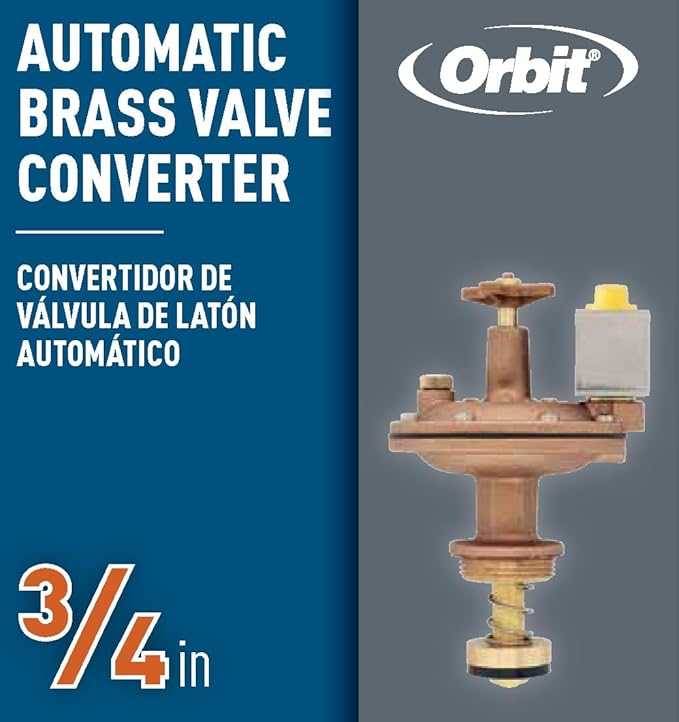

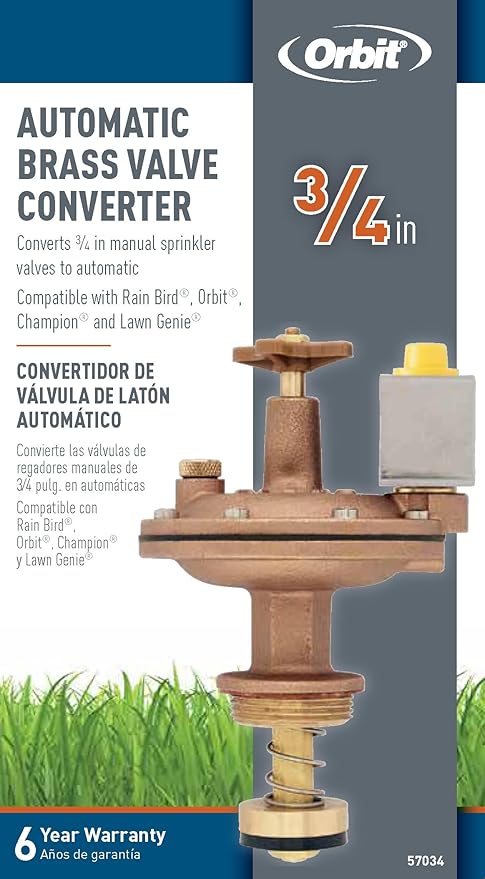

• Brass Conversion: Transforms existing 3/4 in. manual brass valves into automatic valves; fits Champion, Superior, Rain Bird, and LawnLife valve bodies with 1-1/4 in.-16 UN threads
• 24V Automatic Control: Works with all major 24 VAC irrigation controllers including Orbit B-hyve, Hydro-Rain, Rain Bird, and Hunter; solenoid features nickel-plated copper wire for reliable operation

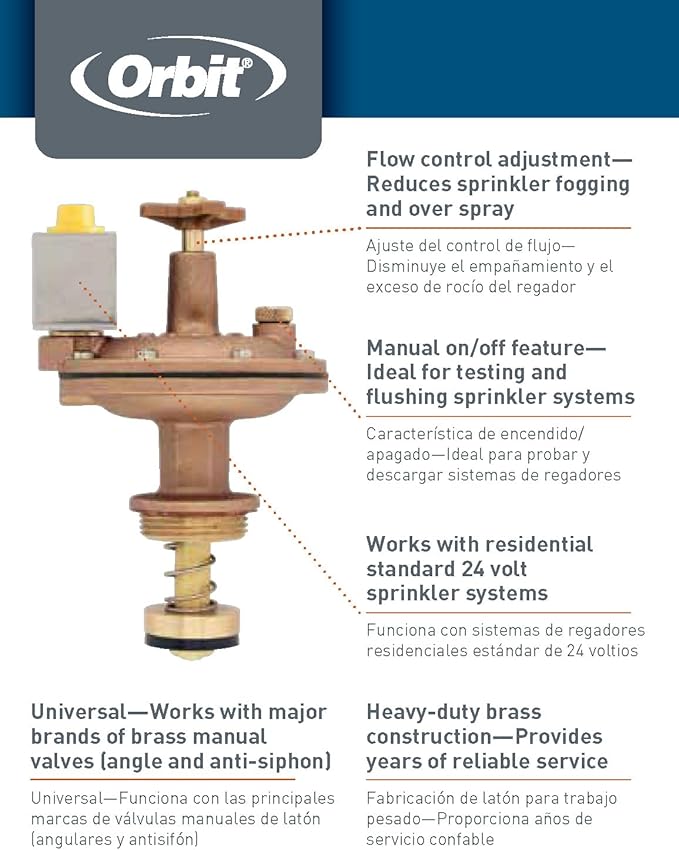

• Easy Manual Operation: Features manual bleed screw for quick testing and flow control adjustment to fine-tune water pressure; allows both automatic and manual valve control without electrical connection

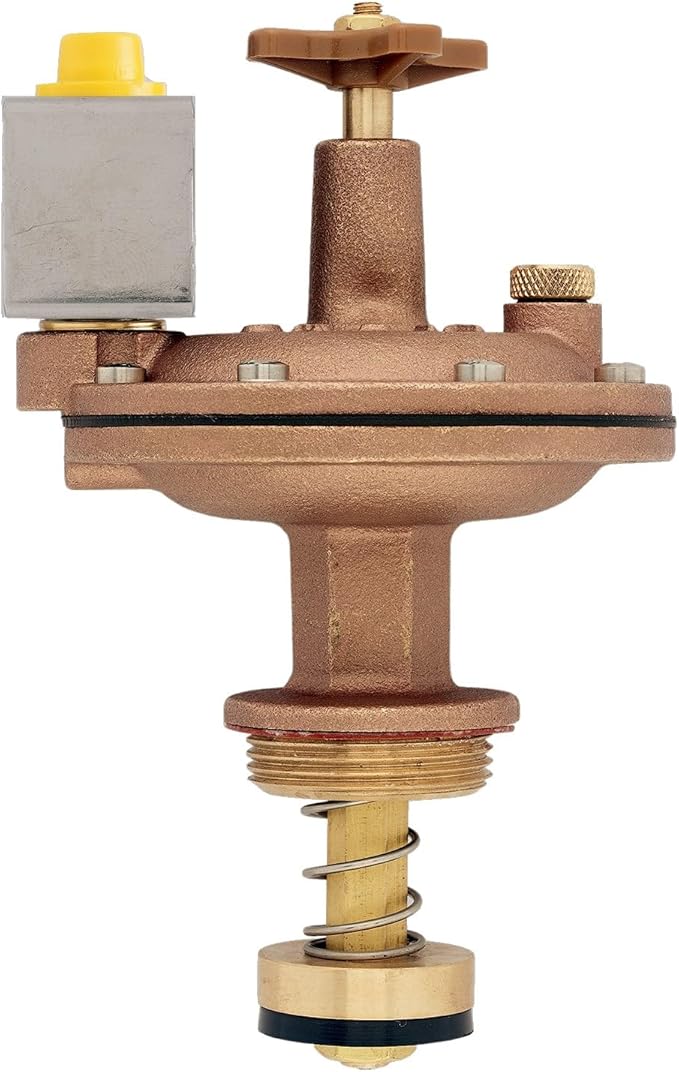

• Durable Brass Construction: Built with reinforced valve diaphragm, copper washer seal, and brass components for long-lasting performance; designed for operating pressures from 25 to 150 PSI
• Complete Replacement Solution: Direct screw-in replacement for worn converter valves; includes solenoid, flow control, and all internal components; compatible with standard sprinkler wire connections

Overview

• Material : Brass
• Brand : Orbit
• Item dimensions L x W x H : 7 x 4 x 4 inches
• Exterior Finish : Brass
• Inlet Connection Size : 0.75 Inches
• Inlet Connection Type : Threaded
• Outlet Connection Type : Threaded
• Maximum Operating Pressure : 125 Pound per Square Foot
• Number of Ports : 2
• Outlet Connection Size : 0.75 Inches
